TA2521 is the latest economy UV-LED flatbed inkjet printer offered by us. Equipped with industrial high-resolution DOD piezo electric grayscale print heads, TA2521 delivers vivid colors and fine details, and at the same time, works seamlessly with professional ColorPRINT RIP and color management software.
With rapid curing UV inks and no need to use plates, TA2521 printer owns the ability print on a wider range of substrats up to 150mm (5.9") and efficiently satisfies the needs of short runs and on-demand printing. TA2521 is the best cost-effective solution for personalized souvenirs, customized gifts, and special promotional materials.
TA2521
TA2521
TA2521
TA2521

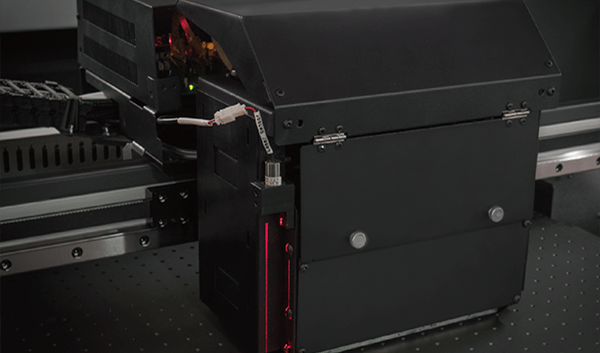

TA2521 owns the ability to print on virtually any substrates of up to 150mm (5.9") thick. Thanks to the full adjustable Z-axis height design and UV-LED curable technology, TA2521 enables outstanding print quality and versatile applications on one device at a fraction of cost and time. The TA2521 printer will give you competitive advantages and open your business up to opportunities in custom items, control panels, electronic products, boxes & packaging, stationary and much more.
|

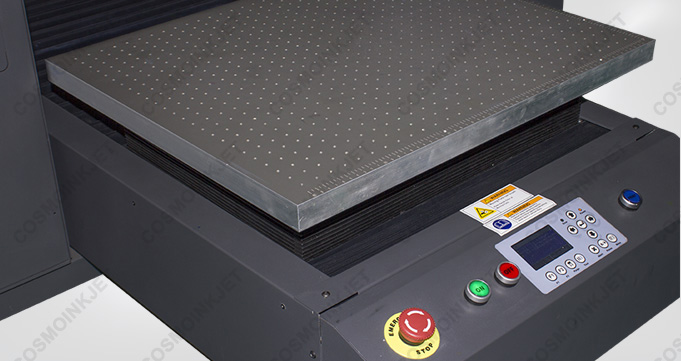

Precision features of TA2521 include scales helping to define the printing origin on the media, avoiding annoying aligning work; plus vacuum holes on the platen to suck air with four fans, ensuring correct registration even for bi-direction or multi-pass printing. With the vacuum function enabled, the media will be sucked tight and flat on the platen, so that it will not scratch the head nozzle and also high-accuracy printing will be achieved.
|
| Vacuum System |

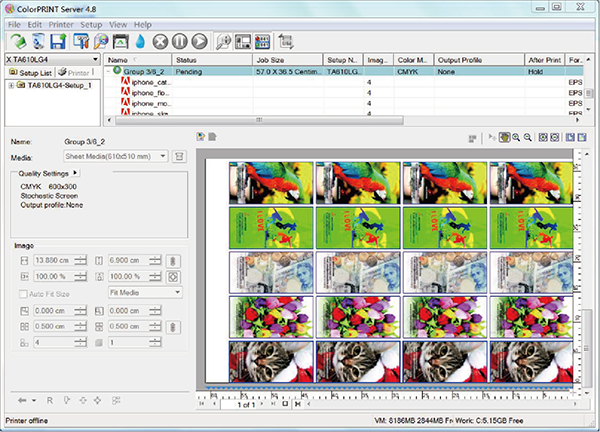

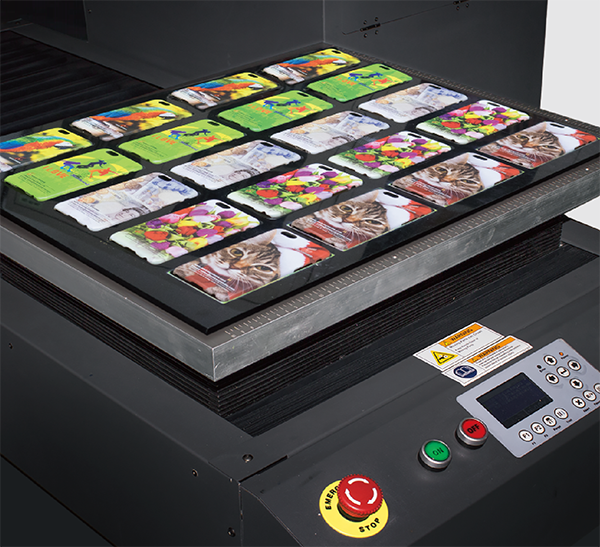

The TA2521 printer is an ideal solution for printing same or different images on a large number of small-sized substrates. Template can be placed on the flatbed table to quickly position small-sized substrates. The ColorPRINT RIP software allows to customize “template” according to the size of the real template and define the print quantity of each image. The real-time preview makes sure what you see is what you print.
|
|
| Custom Template | Template Printing |
Printing with the high density white inks, TA2521 offers bright and vivid colors on transparent and colored media. Thanks to the separate white ink circulation system, TA2521 easily keeps the white ink properly mixed at all times for consistent and reliable printing.
Coming with professional ColorPRINT RIP software, TA2521 enables over-printing for backlit applications on transparent materials, under-printing for colored materials, printing white out of images, or printing white as a spot color.
| Under-Printing | Over-Printing | |
| Print white ink at the area of job |
|
|
| Print white ink at the area of image |
|
|
| Print white ink and color inks individually |
|
|

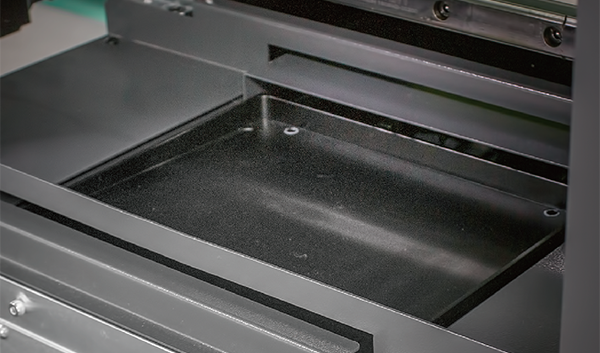

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation. |

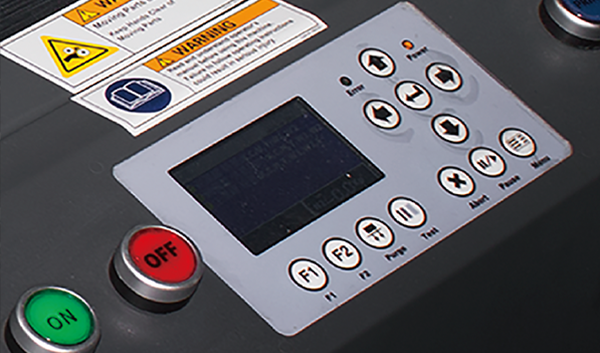

User friendly color LCD Smart Panel provides printer status information and offline printer control. |
An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print head. |
The 1L Ink Tanks with liquid level sensors alarm for the shortage of ink. |
| Print Head Model | |
| Number of Heads | |
| Colors | |
|
Productivity Unit: m²/ hr. |
1200 × 600dpi， 4 pass |
|
1200 × 900dpi， 6 pass |
|
| MH2420 | |
| 4 | 6 |
| CMYK | WW + CMYK |
| 13.33 (143.5) | 12.44 (133.9) |
| 9.26 (99.7) | 6.59 (70.9) |
| MH5420 | |
| 4 | 6 |
| CMYK | WW + CMYK |
| 18 (193.8) | 17.16 (184.7) |
| 13.23 (142.4) | 12.2 (131.3) |
