LZ54/ 75/ 108

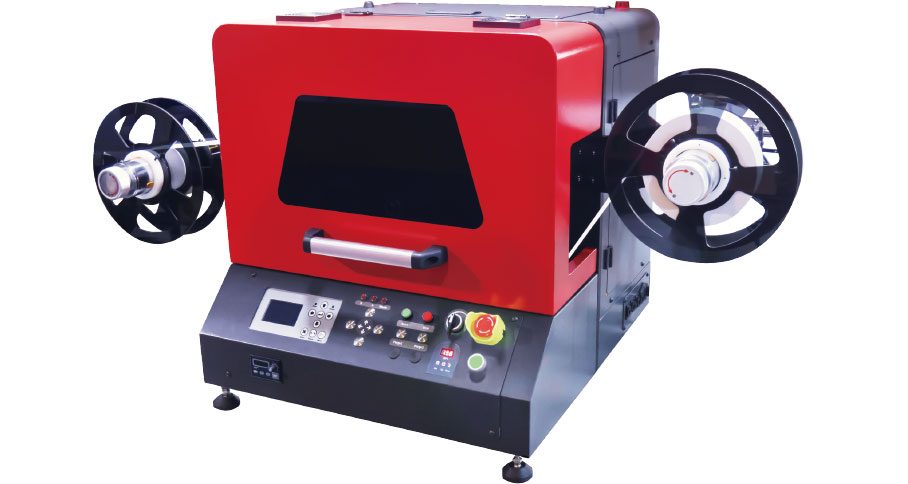

LZ 54 / 75/ 108 INDUSTRIAL UV-LED WEB INKJET PRINTER

Ideal Alternative to Small Water-based & Thermal Transfer Label Printers

LZ Series is an innovative narrow-format UV-LED web inkjet printer specifically designed for industrial short-run digital printing. As AMICA's new development to the label and hang tag inkjet printing market, it brings out exquisite print quality, superior productivity and great flexibility.

Based on highly modular design concept, LZ series can be configured with versatile post-printing modules, such as cutters/ dotting cutters, rewinders, detachers, die cutting or cross-cutting. It is widely applied in logistics, retail, industrial manufacturing, clothing, and pharmaceuticals industries.

  • LZ54/ 75/ 108LZ54/ 75/ 108
  • LZ54/ 75/ 108LZ54/ 75/ 108
  • LZ54/ 75/ 108LZ54/ 75/ 108
  • LZ54/ 75/ 108LZ54/ 75/ 108
  • LZ54/ 75/ 108
  • LZ54/ 75/ 108
  • LZ54/ 75/ 108
  • LZ54/ 75/ 108
  • Increase Profitability with Simultaneous Dual-color Printing LZ series offers simultaneous printing of two spot inks, and the ink colors can be customized. It helps you to meet stringent corporate brand requirements while printing various labels, hang tags, garment accessories, foil packaging, corporate logos and recognizing colors.
  • Expand Applicability with UV-LED Technology With the advanced UV-LED curing technology, LZ series supports a wide range of substrates, outstripping other small-scale water-based label printers and thermal transfer printers.
  • Promote Flexibility with Adjustable Printing Positions LZ series allows for adjustable variable data printing positions. The target printing positions of variable data usually change with different printing jobs. LZ series enables you to meet the demand of each job.
  • Optimize Performance with Convenient Maintenance System Adopting drawer-type design, Automatic Print Head Maintenance System allows purging, wiping and capping to promote performance and decrease maintenance expenses.

LZ series supported fonts and barcodes:

  • Text, numbers, graphics, dates, time, serial numbers and images
  • True Type and Open Type
  • 1-D Barcodes: EAN 13, EAN 8, Code 39, Code 128, Codabar 2 Widths, GS1 DataBar (RSS-14), Interleaved 2 of 5, UPC-A, and USPS PostNet
  • 2-D Barcodes: PDF417, QR-Code, and Data Matrix

Software

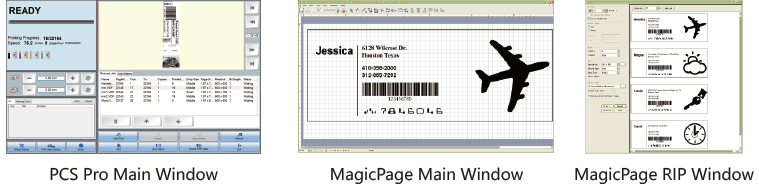

Professional Printer Control Software (PCS Pro) installed on the PC is specifically customized for variable data printing (VDP). It offers a user-friendly interface to interactively control LZ series, monitor its status, and set its options. With easy operation and maintenance of the printer, PCS Pro greatly enhances print productivity and efficiency.
MagicPage VDP Software offers a simple and flexible variable data printing (VDP) workflow with the online and offline modes. Users can directly print VDP jobs with the MagicPage installed on the Client PC. MagicPage also enables users to design and modify the output templates by extensive editing tools.

Features

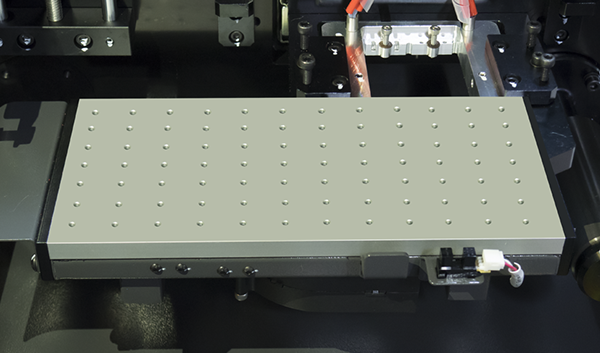

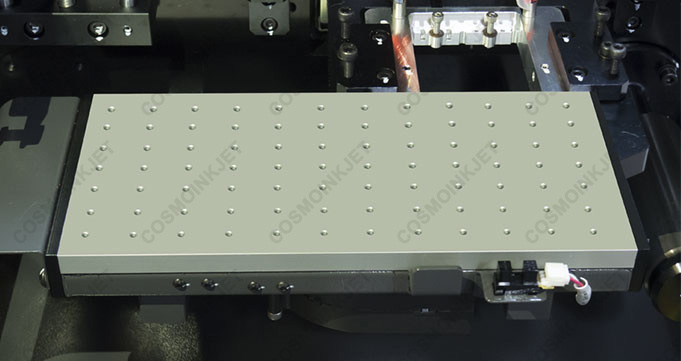

Vacuum Table keeps media stationary for accurate registration during the whole production.

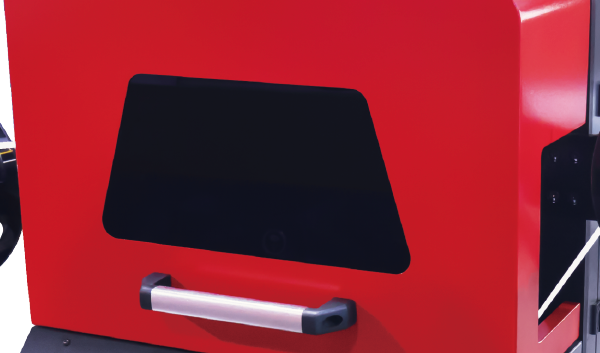

Visualized Window enables to inspect printing status, preventing UV light leakage.

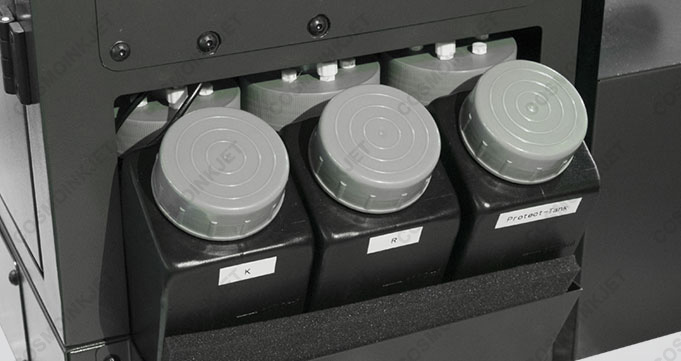

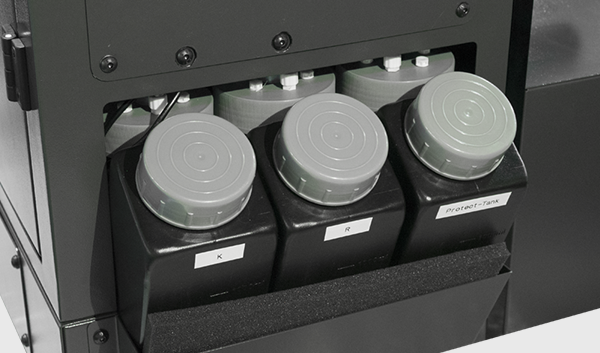

Ink Supply System 1L bulk ink tanks; built-in liquid level sensors for alarming the shortage of ink; anti-overflow unit prevents ink from flowing out, keeping related components intact.

UV-LED Curing System ensures instant ink curing for high speed printing and consistent print quality.

Active Negative Pressure System provides high-quality printing at higher firing frequency.

Servo-driven System ensures high-precision and high-speed printing with low noise and slight vibration.

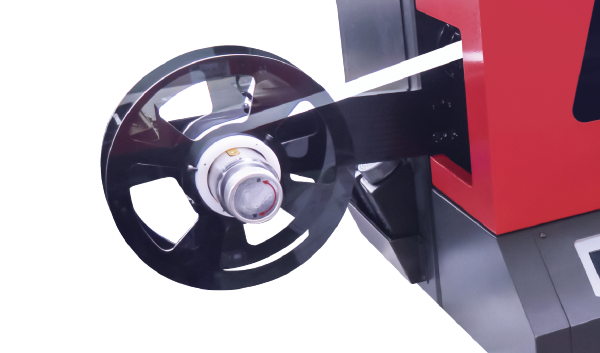

Automatic Unwinder & Rewinder integrated with reliable metal rollers; available with max. 110mm (4.33") roll-fed width and max. roll diameter of 300mm (11.8").

Print Technology

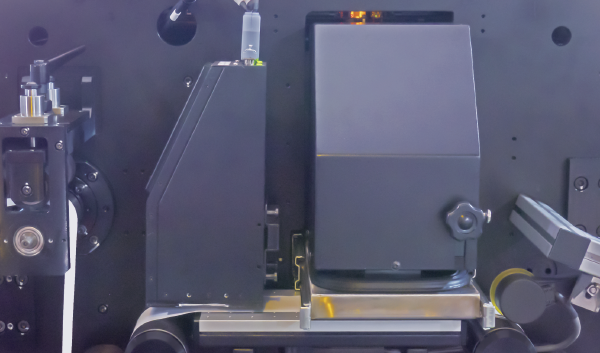

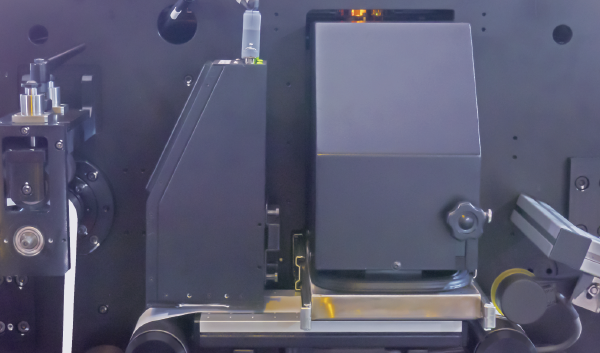

DOD piezo electric inkjet print heads Automatic print head maintenance module for purging, wiping and capping
Curing System
UV-LED lamp
Ink
Ink Type: UV curable ink, two spot colorsInk Tank Volume: 1L
Media
Handling: tight web continuous roll feed Types: self-adhesive label stock, coated and uncoated paper, writing paper, synthetic paper,multi-layer adhesive compound paper, etc. Roll-fed Width: max. 110mm (4.33") Roll Diameter: max. 300mm (11.8") Roll Weight: max. 30kg Core Diameter: 76.2mm (3.0")
Weight
80kg (176lbs)
Environment requirements
Temperature: 16-28°C (61-82°F) Relative Humidity: 40-60% (Recommended) Altitude: up to 1000m (3281ft)
Power requirements
Frequency 50/ 60Hz; Voltage 220V±10%; Power 1320KW/ 6A
Software and User Interface
Printer Control Software (PCS) MagicPage VDP Software
Connectivity
Fast Ethernet (100Mbit/ s) or High speed USB 3.0 interface
LZ54 LZ75 LZ108
Print head model* MH5420 KM print head KY print head
Print head number 2
Print width 54mm 75mm 108mm
Color Monochrome/ Dual-color
Print resolution 600 × 600dpi，600 × 300dpi
Droplet size min. 7pl, Variable Droplet Size min. 3.5pl, Variable Droplet Size min. 6pl, Variable Droplet Size
Print productivity 30m/ min.
For other print head models and more customized configurations, please feel free to contact us for your requirements.
