TL2024

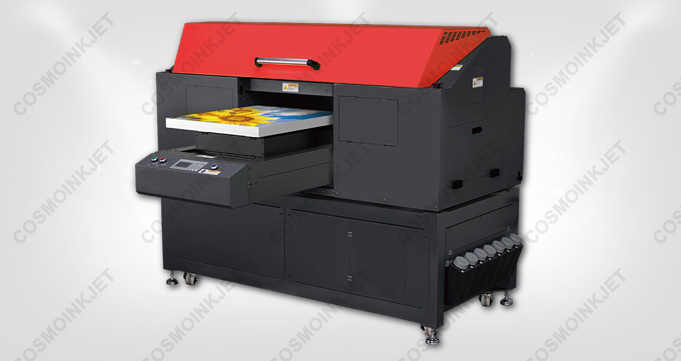

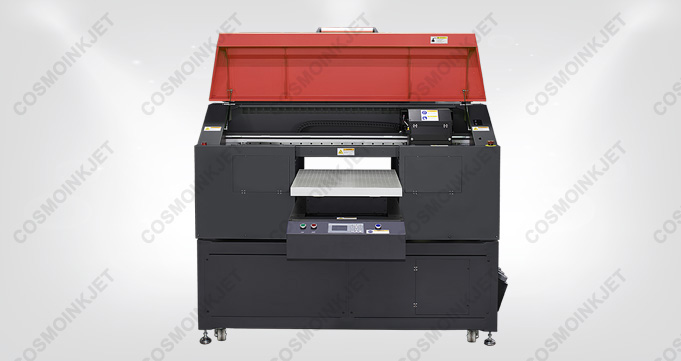

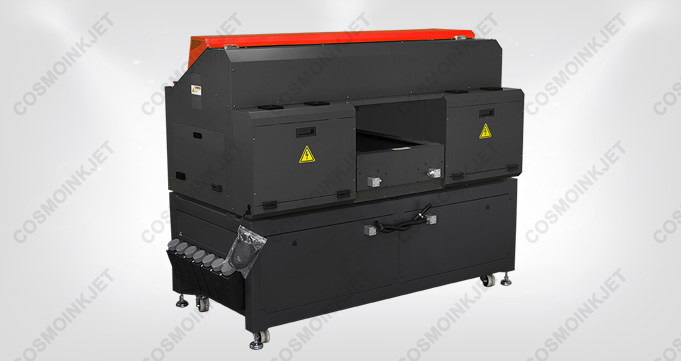

TL2024 Industrial UV-LED Inkjet Printer

TL2024 is an industrial UV-LED inkjet printer offered by us. Equipped with high-resolution DOD piezo electric grayscale print heads, TL2024 delivers vivid colors and fine details, and at the same time, works seamlessly with professional ColorPRINT RIP and color management software. With rapid curing UV inks and without the need to use plates, TL2024 efficiently satisfies the needs of short runs and on-demand printing. TL2024 is an ideal solution for personalized souvenirs, customized gifts, and special promotional materials.

  • TL2024TL2024
  • TL2024TL2024
  • TL2024TL2024
  • TL2024TL2024
  • TL2024
  • TL2024
  • TL2024
  • TL2024

Comprehensive Technologies Deliver Outstanding Print Quality

  • A high performance and long lasting AC servo motor controls the movement of the shuttle.
  • A high precision rotary encoder ensures accurate media feeding.
  • Proprietary VDS (Variable Droplet Size) control technology integrates the print head control of multi-level size droplets with the ColorPRINT RIP software for producing sharp images with smoother gradient.
  • Print high quality images up to 1200 × 900dpi with CMYK plus White color (Optional) .

Benefits of UV-LED Technology

UV-LED technology is an earth friendly solution with no mercury, no ozone, no UVC rays, and no risk in bulb breaking. Meanwhile, it has significant advantages in energy usage and in reducing the heat load to the substrate. UV-LED lamps have long life cycles for consistent print quality.

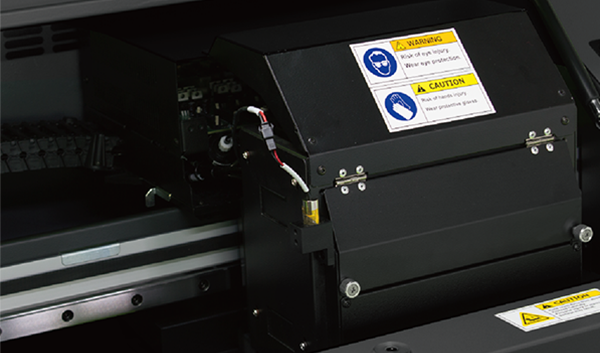

Dual UV-LED lamps ensure ink curing for high speed printing. And UV-LED lamps have instant On/ Off capability so that printing and curing are synchronized efficiently.

Superior White Ink Printing Expands Capabilities and Business (Optional)

Printing with the high density white inks, TL2024 offers bright and vivid colors on transparent and colored media. Thanks to the separate white ink circulation system, TL2024 easily keeps the white ink properly mixed for consistent and reliable printing.

Coming with professional ColorPRINT RIP software, TL2024 enables over-printing for backlit applications on transparent materials, under-printing for colored materials, printing white out of images, or printing white as a spot color.

Under-Printing Over-Printing
Print white ink at the area of job
Print white ink at the area of image
Print white ink and color inks individually

Features

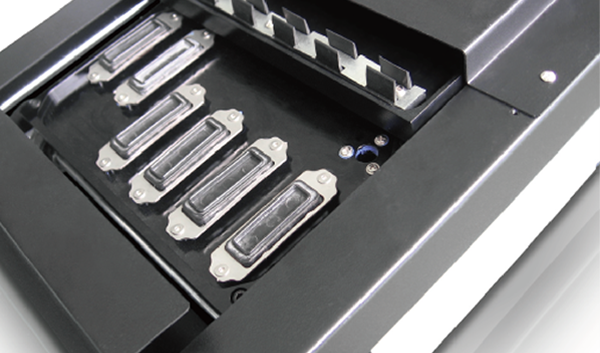

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation.

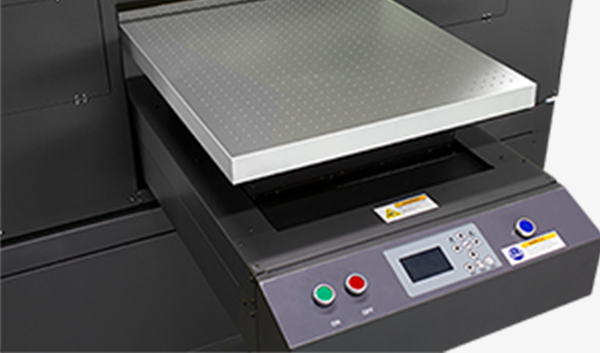

Smart Platen Height Adjustment System automatically detects and fine-tunes the distance between print heads and media.

An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print head.

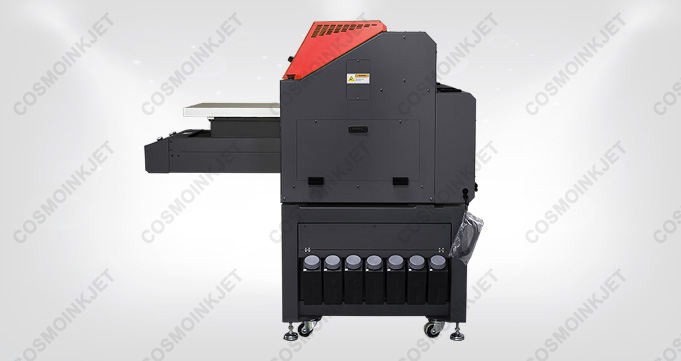

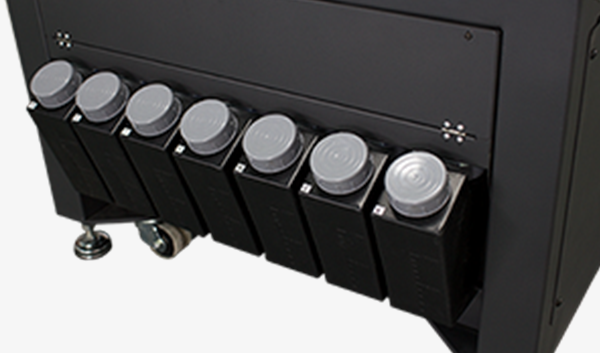

The 1L ink tanks with liquid level sensors alarm for the shortage of ink.

Ink System
UV curable CMYK inks White ink (Optional) 1L main ink tank for each color Automatic ink supply system Active negative pressure system
Print System
DOD piezo electric grayscale print heads,automatic voltage and temperature control Single or double UV-LED lamps with air cooled
Automatic Print Head Maintenance Module
Automatic print head maintenance module for purging, wiping and capping
Formats
Popular desktop file formats, including JPEG,TIFF, PDF, EPS and DCS
Media
Automatically detect the thickness of media Media up to 75mm (2.95") thick Support PVC, wood, glass, foam board, acrylic, tile, metal, plywood, plastic, etc.
RIP and User Interface
ColorPRINT RIP software Control panel with color LCD display panel Printer Control Software (PCS)
Connectivity
High speed USB 2.0 interface
Operational Environment
Temperature: 20-30°C (78-86°F) Humidity: 40-70% (Recommended) Altitude: up to 1000m (3281ft) Electrical: Single phase 220V ± 10%;(50/ 60Hz, AC); 10 Amps Maximum; 2.2 KW
Max. Printing Zone Size(W × D)
500mm × 620mm(19.7" × 24.4")
Table Size(W × D)
540mm × 640mm(21.3" × 25.2")
Dimensions(W × D × H)
1680mm × 1540mm × 1380mm(66" × 60.6" × 54")
Productivity
Print Head Model MH2420
Number of Heads 4 6
Colors CMYK WW+CMYK
(Optional)
Productivity
Unit:
m²/ hr. 		1200 × 600dpi，
4 pass 		9.6 (103.3) 9.2 (99.0)
1200 × 900dpi，
6 pass 		7.1(76.5) 6.8(73.2)
