LPS330 is an advanced, versatile and cost-effective UV-LED inkjet printer, which aims to meet the needs of various printing applications. The highly engineered and compact design of LPS330 integrates the functions required for packaging and specialty labels, industrial decoration, and variable data printing.
As an all-in-one printer, LPS330 has the tools you need to enter the digital printing world. Not only can you enjoy the photographic image quality that benefits from the multi-pass scanning printing technology, but you can also obtain higher printing effciency than ever with a single print swath up to 320 mm (12.6 in). LPS330 is an ideal choice for responding to the growing demand for personalized printing, custom printing, and sample printing.
LPS330
LPS330
LPS330
LPS330

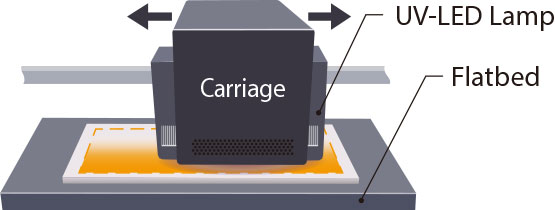

In flatbed printing mode LPS330 allows users to print directly on rigid substrates and supports different templates for different items, such as stationery, cards, gifts, and novelties.

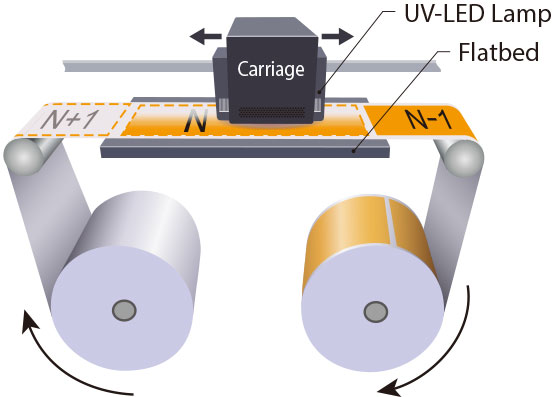

In roll-to-roll & flatbed printing mode, LPS330 allows you to produce eye-catching, distinctive prints for a wide range of applications.
2.5D printing enables you to achieve remarkably rich and special effects ranging from gloss or matte finishes for overall or only appealing parts, to texture or embossed effects. LPS330 also supports to build up raised ink layers on a wide range of thick substrates.
|
|

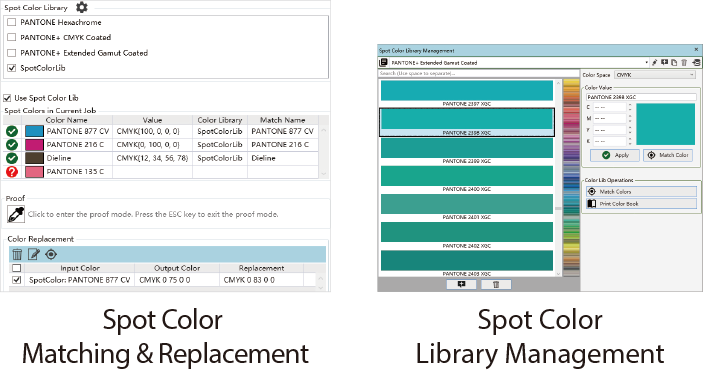

Logos & recognizing color printing. LPS330 supports professional color management workflow and is compatible with various international standard ICC profiles. LPS330 enables you to print spot colors with combinations of 4 or 6 process inks, or with spot inks. It helps you to meet even stringent corporate brand requirements while printing corporate logos and recognizing colors.

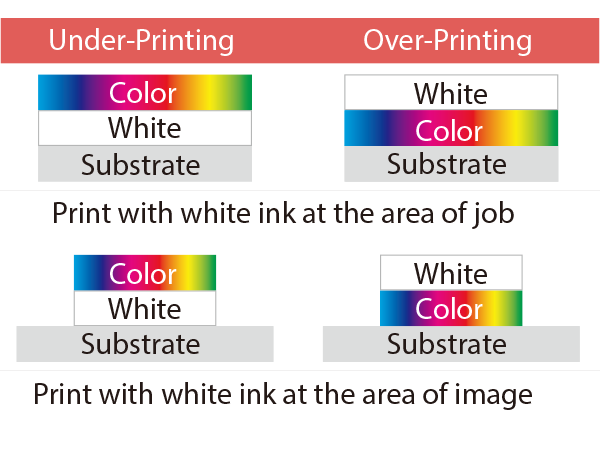

Outstanding white color printing. The White Ink Printing feature including under-printing and over-printing offers outstanding solid and opaque white ink layers on transparent films or metallic substrates. High quality images without white stitch lines can be obtained thanks to the Choke feature.
High-resolution printing. Equipped with industrial DOD piezoelectric print heads, featuring up to 600dpi physical resolution, LPS330 produces small-sized texts and crisp, clear, easy-to-read barcodes. Amica’s proprietary VDS (Variable Droplet Size) control technology realizes sharp images with fine details of graphical elements, smoother gradients and vivid colors.
|
 |

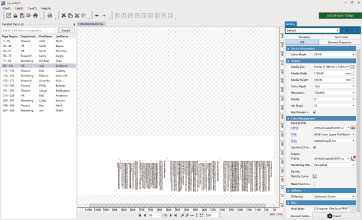

NuviPRINT® Main Window with Variable Data List |

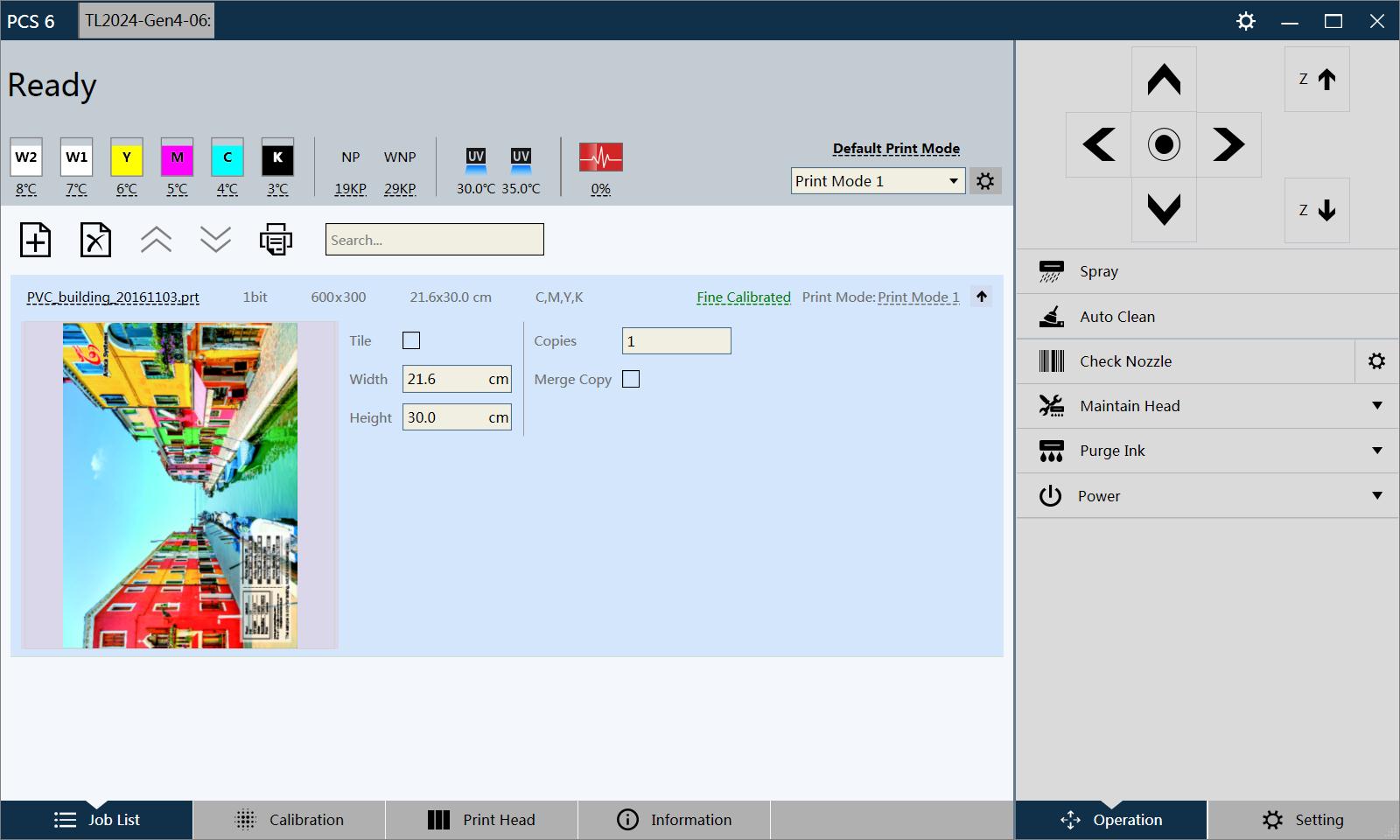

Printer Control Software |
Code 39 |

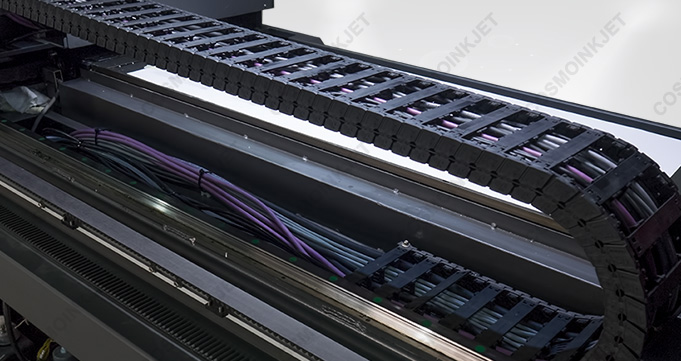

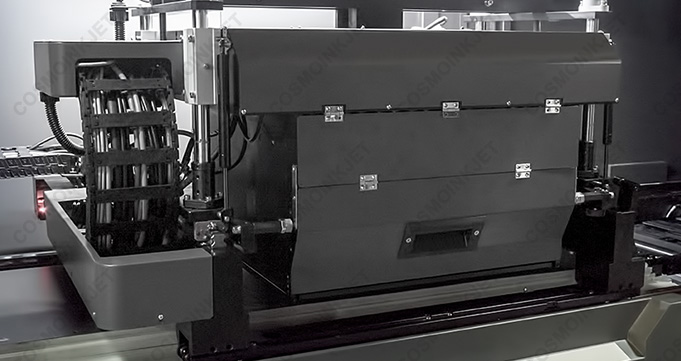

For higher print productivity, the wide shuttle carriage supports up to 18 print heads and 6 color channels to achieve 320 mm print width per print swath. |
Based on the all-in-one design concept, the small and compact print head maintenance module allows automatic purging, wiping and capping. |

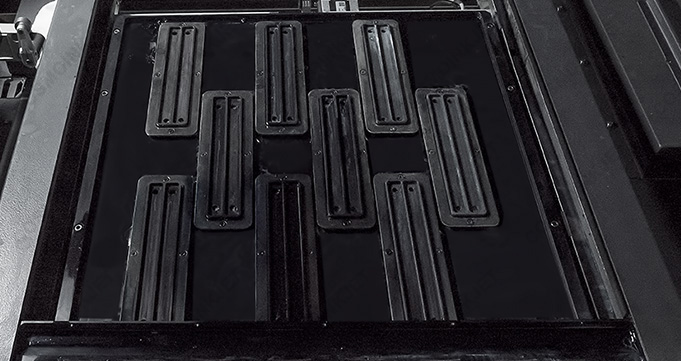

During high-speed production, the vacuum table keeps the substrate stationary and flat to obtain precise color registration. |
Using the integrated technology including servo drive control, tension control, and automatic deviation correction, LPS realizes high-precision media feeding. |
The splicing table facilitates fast roll switching, reducing downtime and material waste. |
The CCD vision system can quickly identify black positioning marks to accurately overprint varnish patterns, variable data or images on the preprinted roll. |

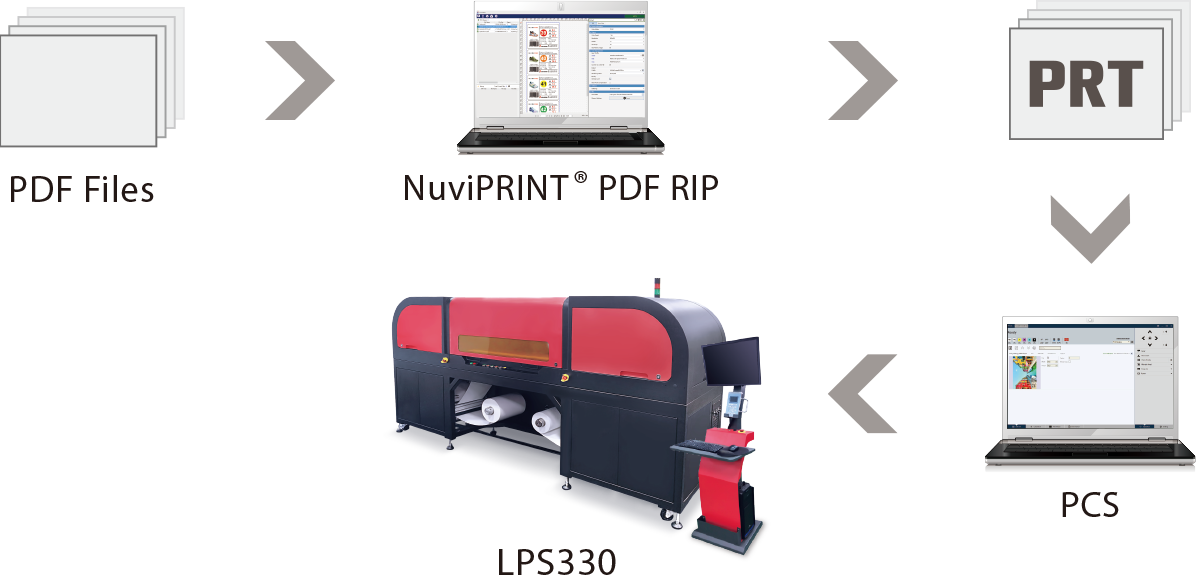

LPS330 works seamlessly with the NuviPRINT® PDF RIP software and Printer Control Software for high-productivity and versatile printing. The enhanced production workflow not only implements a streamlined approach, but makes predictable and high-quality output as well.
| Print Resolution | 720 × 600 dpi | 720 × 900 dpi | 720 × 600 dpi | 720 × 900 dpi | |
| Color Modes |
CMYK or CMYKLcLm |
CMYK + WW or CMYK + VV |
|||
| Number of Print Heads |
12 (2 × 6) or 18 (3 × 6) |
18 (3 × 6) | |||
| Ink Types | UV curable ink | ||||
| Image Size | 1100 × 320 mm | ||||
| Print Productivity* | Unit: sqm/ hr | 144 | 115 | 67 | 48 |
| Unit: sqft/ hr | 1550 | 1237 | 723 | 516 | |
