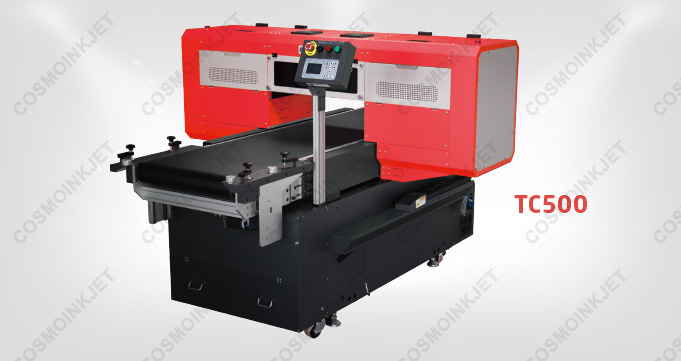

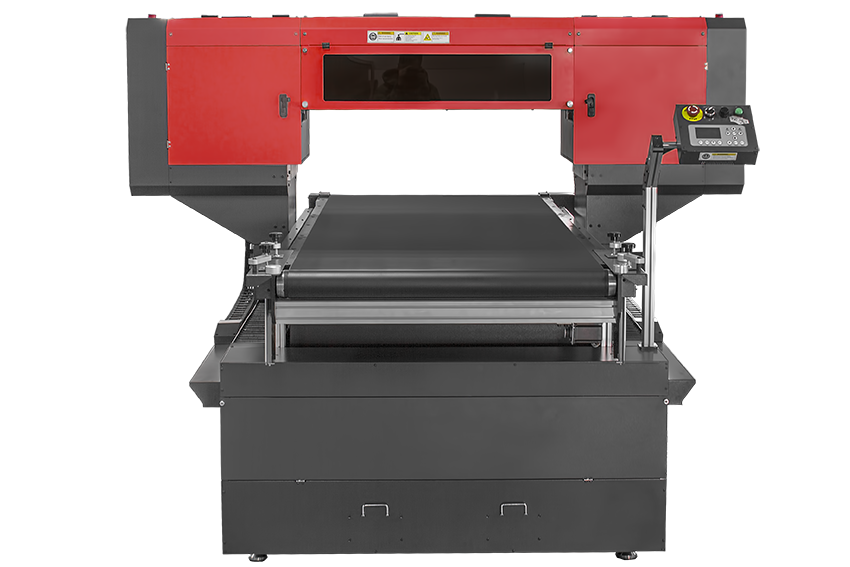

TC500/ TC800/ TC800 EH
TC500/ TC800/ TC800 EH
TC500/ TC800/ TC800 EH
TC500/ TC800/ TC800 EH

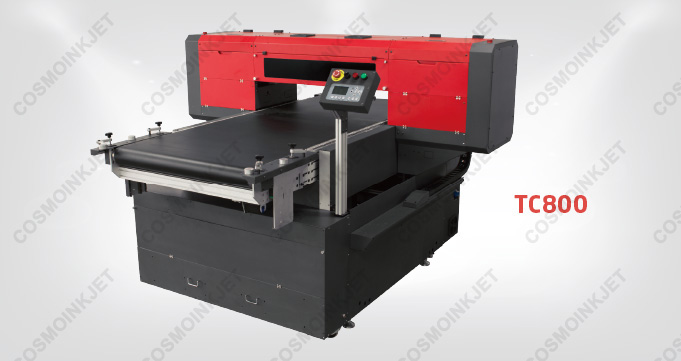

TC series is designed for high-speed print production of 3-Dimension objects and boards. TC series improves productivity of short- and medium-run print jobs featuring multiple operation zones for loading, printing and unloading.
Efficient workflow enhancements increase productivity and
reduce time, costs and efforts. TC series is the ideal choice
for personalized print decorations of souvenirs, customized
gifts, and special promotional materials.
|
|
|
|
ColorPRINT RIP Software |
Printer Control Software (PCS) |

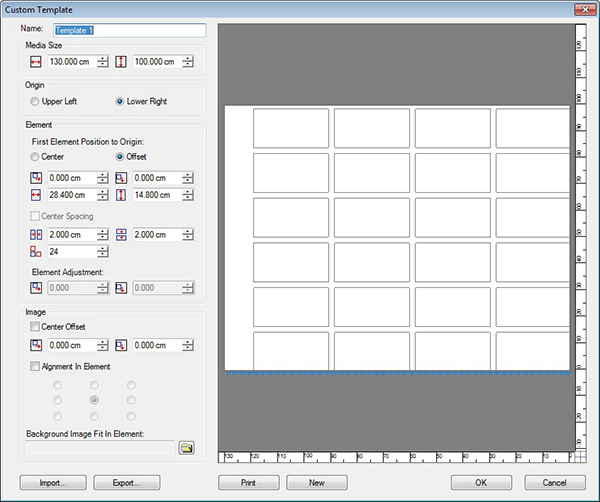

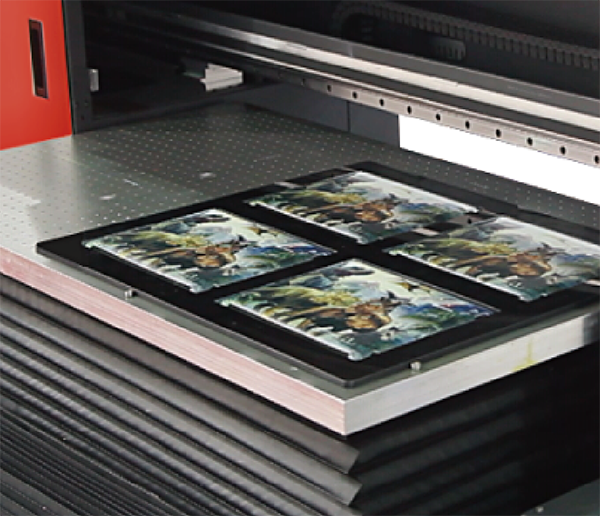

The TC printer is an ideal solution for printing same or different images on a large number of small-sized substrates. Template can be placed on the flatbed table to quickly position small-sized substrates. The ColorPRINT RIP software allows to customize “template” according to the size of the real template and define the print quantity of each image. The real-time preview makes sure what you see is what you print.
|
|
| Custom Template | Template Printing |

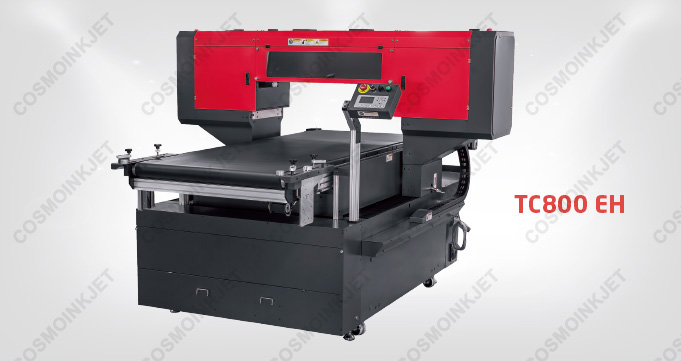

Thanks to the full adjustable Z-axis height design and UV-LED curable technology, TC800 EH owns the ability to print on virtually any substrates between 260mm and 460mm thick, realizing outstanding print quality and versatile applications on one device at a fraction of cost and time.
TC800 EH will give you competitive advantages and open your business up to opportunities in custom items, such as corrugated boards and suitcases.
|
Even printing at a single print pass with the high
density white ink, TC series greatly offers vivid and
accurate colors on transparent, light, or dark media.
Meanwhile, the ability to print on a wide variety of
media up to 150mm, 260mm or 460mm thick
expands your business.
Thanks to the separate white ink circulation system,
TC series easily keeps the white ink properly mixed
for consistent and reliable printing.
| Under-Printing | Over-Printing | |
| Print white ink at the area of job |
|
|
| Print white ink at the area of image |
|
|
| Print white ink and color inks individually |
|
|

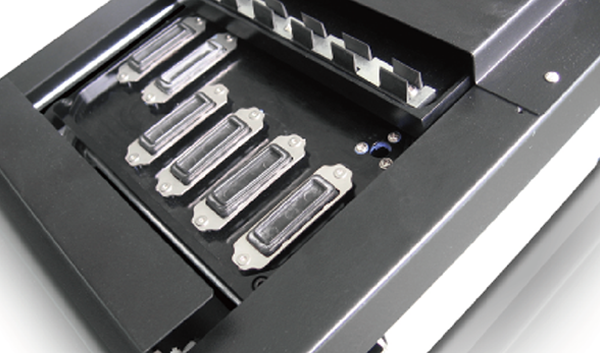

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation. |

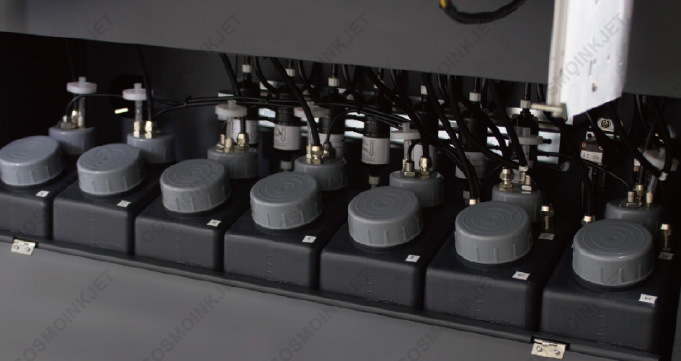

The 3L double-inlet Ink Tanks with liquid level sensors are easily used for adding ink and alarming for the shortage of ink. |

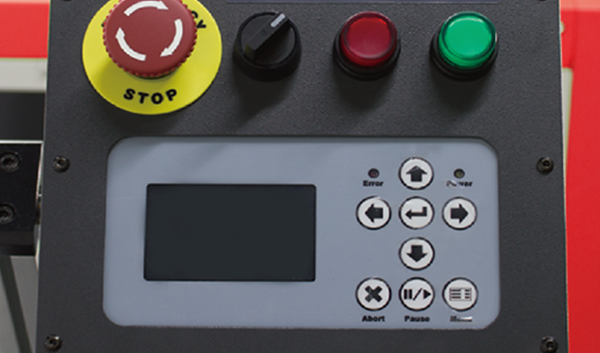

User friendly color LCD Smart Panel provides printer status information and offline printer control. |

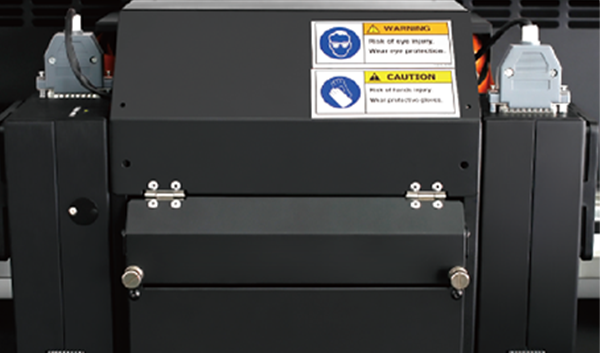

An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print heads. |
| Printer Model | |
| Print Head Model | |
| Number of Heads | |
| Number of Colors | |
|
Productivity Unit: m²/ hr. (ft²/ hr.) |
1200 × 600dpi， 4 pass |
|
1200 × 900dpi， 6 pass |
|
| TC500 | |
|
MH2420; 7pl, 14pl, 21pl, Variable Droplet Size Control Technology |
|
| 4 | 6 |
| CMYK | WW + CMYK |
| 9.6 (103) | 9.2 (99) |
| 7.1 (76) | 6.8 (73) |
| TC800/ TC800 EH | |
|
MH5420; 7pl, 14pl, 21pl, Variable Droplet Size Control Technology |
|
| 2 | 3 |
| CMYK | WW + CMYK |
| 22.4 (241) | 21.1 (227) |
| 16 (172) | 14.6 (157) |
