TDL series is a UV-LED flatbed inkjet printer combining reliability, stability and versatility. Equipped with industrial DOD piezo electric grayscale print heads, the TDL series printer easily achieves high-speed and high-quality printing. Working seamlessly with professional ColorPRINT RIP and color management software, the TDL series printer delivers vivid colors, fine details, and smooth gradients.
With rapid UV-LED curing and without the need to use plates, the TDL series printer efficiently satisfies the needs of short-run and on-demand printing. The TDL series printer is an ideal solution for personalized souvenirs, customized gifts, and special promotional materials.

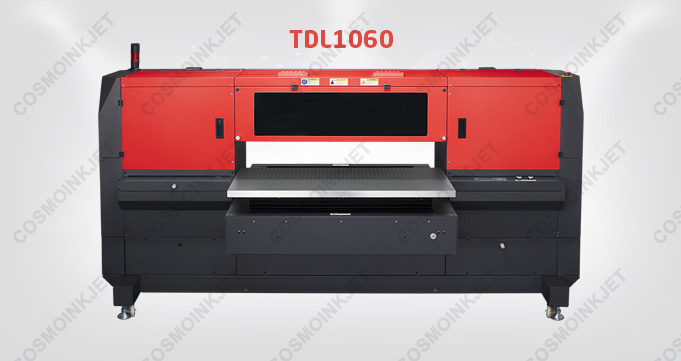

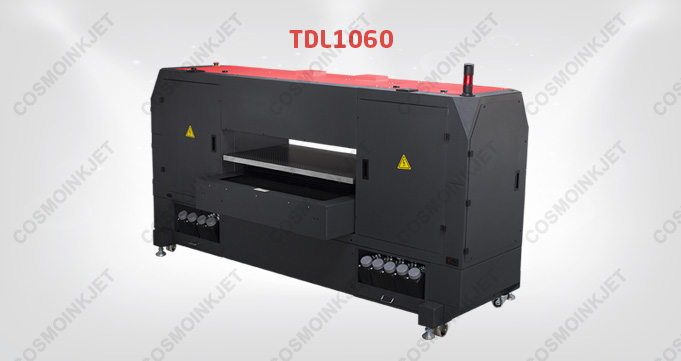

TDL1161 EH/ TDL1060
TDL1161 EH/ TDL1060
TDL1161 EH/ TDL1060
TDL1161 EH/ TDL1060

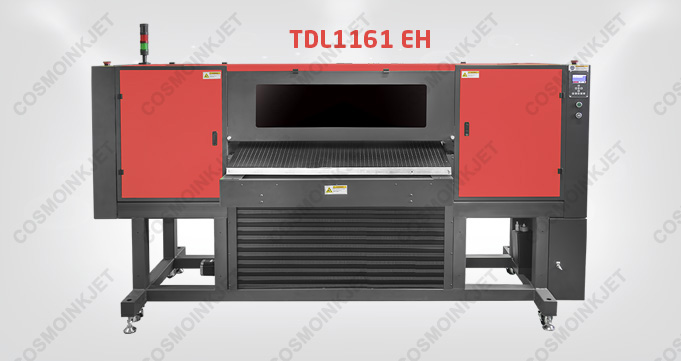

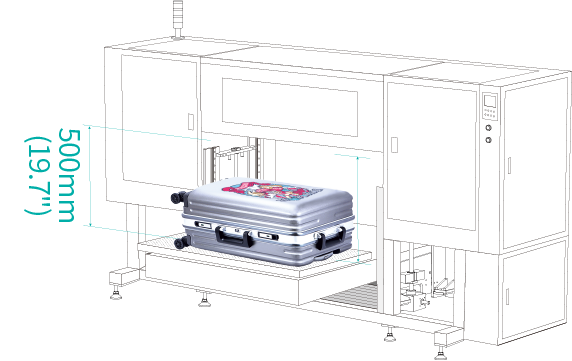

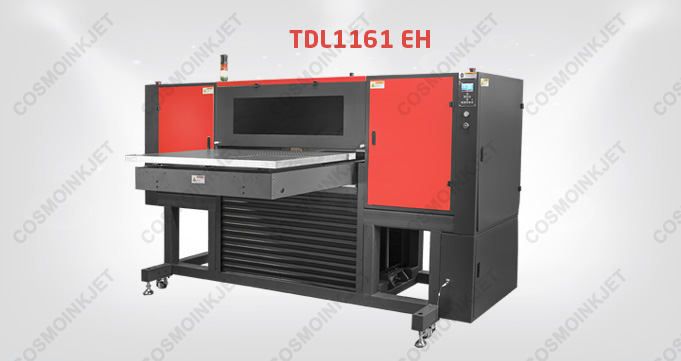

The TDL1161 EH printer owns the ability to directly print on various substrates up to 500mm (19.7") thick, such as suitcases and corrugated boxes. Thanks to the patented full adjustable height technology of the flatbed and UV-LED curing technology, TDL1161 EH enables outstanding flexibility on one device at a fraction of cost and time, bringing you competitive advantages in custom items and displays.

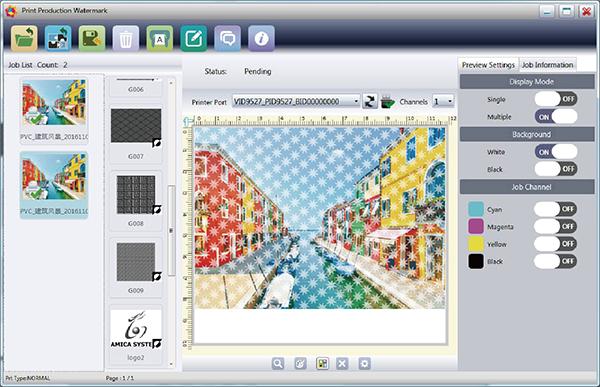

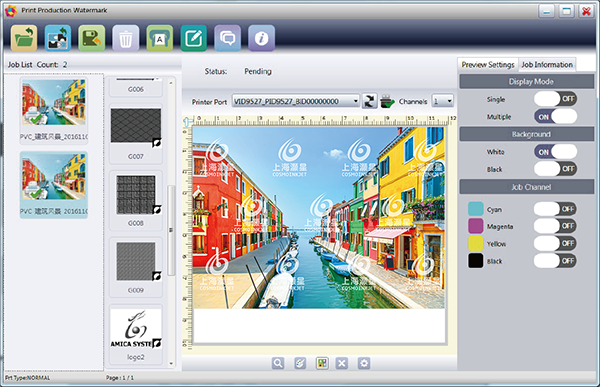

Varnish printing provides a variety of surface finishes with attractive tactile and visual effects. The overall media can be covered with a gloss/ matte finish; or glossy/ matte spot varnish can be added to some specified appealing parts. Various types of patterns are embedded in the Print Production Watermark (PPW) software for digital varnish printing. Logos can be also printed out as varnish watermarks.
|
|
| Logos as Varnish Watermarks | Surface Finishes with PPW Patterns |
|
| Some Patterns in the PPW Software |

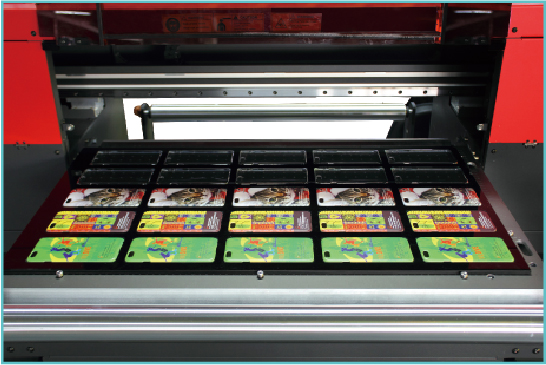

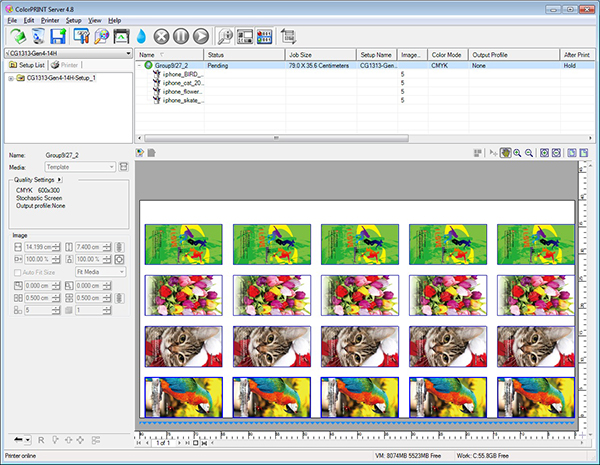

The TDL series printer is an ideal solution for printing multiple small-sized objects simultaneously, even with different artworks. The fixture can be placed on the flatbed table to quickly position small-sized objects. The ColorPRINT RIP software allows to customize “template” according to the fixture and define each image. The real-time preview achieves what you see is what you print.
 |
 |
| Custom Template | Template Printing |
 6 color inks including specialty inks offer a wide color gamut and accurately reproduce even the most difficult colors. Specialty ink colors also well match corporate logos and recognizing colors.
|
 Directly prints on transparent and colored substrates. Brilliant and vivid image colors are displayed due to white ink layer under the image.
|
 The Primer can be printed with CMYK(SP1 SP2) inks in one run and offers better ink adhesion on different materials.
|
 The Varnish can be printed with CMYK(SP1 SP2) inks simultaneously. Images will look more attractive by printing the Varnish layer.
|
 The White ink and Varnish can be printed with CMYK(SP1 SP2) inks for special market application.
|
Printing with high density white inks, the TDL series printer offers bright and vivid colors on transparent and colored media. Thanks to the white ink circulation system, TDL series easily keeps the white ink properly mixed for solid covering and coloration.
| Under-Printing | Over-Printing | |
| Print white ink at the area of job |
|
|
| Print white ink at the area of image |
|
|
| Print white ink and color inks individually |
|
|

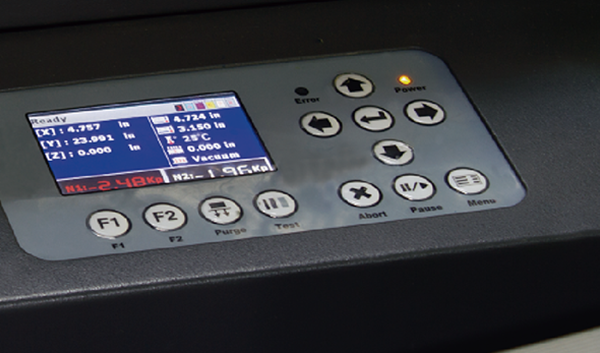

User friendly color LCD Smart Panel provides printer status information and offline printer control. |

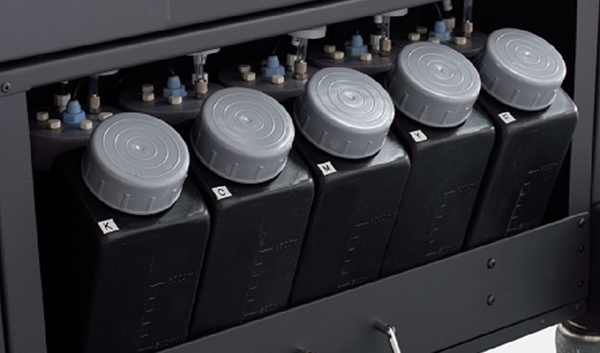

Automatic Ink Supply System monitors and controls the ink levels of main/ sub ink tanks with liquid level sensors. The alarm will be automatically triggered for ink shortage or overflows. |
An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print head. |

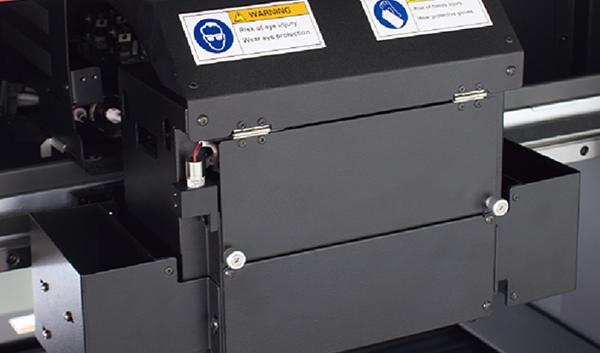

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation. |
* Close-up pictures displayed above are details from TDL1060 for your reference only. See details of TDL1161 EH at the cover page.
| Print Productivity | TDL1161 EH/ TDL1060 | ||
| Print Head Model | MH5420 | ||
| Number of Heads | 2 | 3 | |
| Colors | CMYK | WW + CMYK | |
|
Productivity Unit: m2/ hr. (ft²/ hr.) |
1200 × 600dpi 4 pass |
25.3 (272) |
22.8 (245) |
|
1200 × 900dpi 6 pass |
17.5 (188) |
16.2 (174) |
|
|
1200 × 600dpi 8 pass |
14.1 (152) |
12.7 (137) |
|
