Printer control software

Printer Control Software (PCS)

installed on a Host PC is designed for scanning inkjet printing. It offers a user-friendly interface to interactively control the printer, monitor printer status, and set printer options, such as the amplitude and pulse width of jetting waveforms as well as the voltage and temperature for each print head. Amica’s PCS processes incoming RIP data and provides a software interface allowing RIP software to print jobs to the printer directly. The control interface features include print head cleaning, print head calibration, motor speed settings, and print head settings, etc..

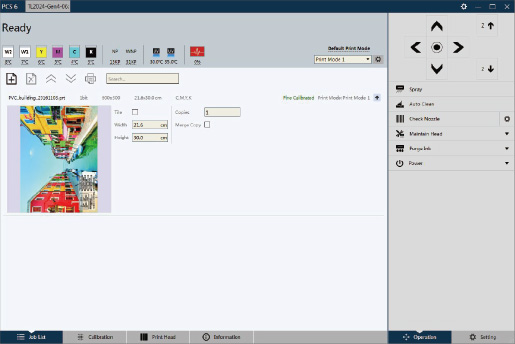

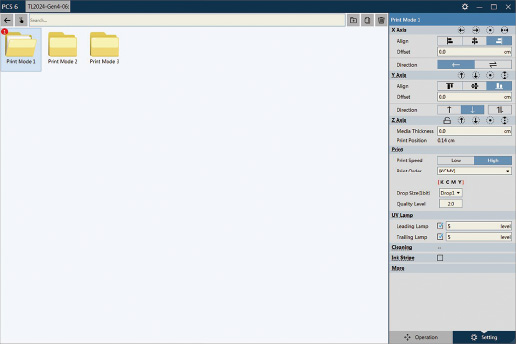

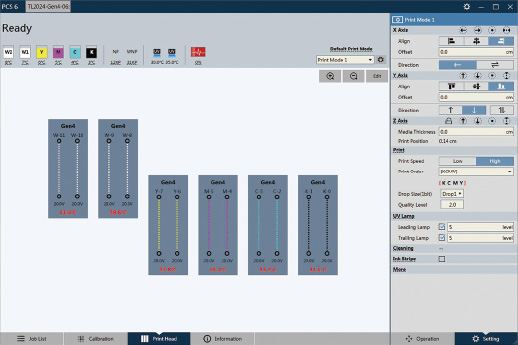

Main Window Print Head Settings Print Mode Management
User-friendly Interface
Displays job queue and previews Easy to monitor and control printer and job status with instant feedback
Print Parameters Settings
Supports multiple print modes management Sets origin position, media width and multi-roll media Sets pass number/quality level, speed, direction and job spacing Sets spraying on/off, timing, spraying frequency/interval Sets print orders of CMYK, White, Varnish and Primer ink Saves, exports and imports settings
Job Management Workflow
Accepts .prt, .tif or .job files Directly adds job to printer and sets job properties Directly prints from ColorPRINT RIP
Print Head Alignment Workflow
Precise compensation algorithm for print head physical position error Alignment solution for single group, multiple group or angle-positioned print head Nozzle block calibration
Remote Printer Control
Controls the movement of media and printer carriage Measures media width Checks nozzle status, controls print head cleaning Sends job control command to print, abort, pause, delete or copy Displays real-time status information of printer and job Displays statistical information of printer, such as total print time, total moving distance/ times of printer carriage, total PWC times, etc.
ADDITIONAL FUNCTIONS MANAGEMENT
UV lamp setting Z-axis control to adapt to different media Print head maintenance module for automatic purging, wiping and capping Support the third party RIP software Skip white function to enhance productivity Multi-platen printing setting User authority management
