TR770 is a proven flatbed UV-LED inkjet printer designed for efficient, versatile, medium-volume print
production. TR770 also supports a separate and dedicated flexible media option that greatly matches with
the flatbed table.
UV-LED technology is an earth friendly solution with no mercury, no ozone, no UVC rays, and no risk in
bulb breaking. Meanwhile, it has significant advantages in energy usage and in reducing the heat load to
the substrate. With environment-friendly UV-LED curing technology, TR770 supports to print on a wide
variety of media.
To help expand your revenue-producing opportunities, TR770 offers built-in White Ink printing capability.
TR770 also supports varnish for decorative effects or double-white for added versatility.
With a smart and compact design, TR770 enables you to expand your business in small workspace.
TR770 is a reliable, cost-effective, multi-functional UV-LED flatbed and roll-to-roll (optional) inkjet printer.
TR770
TR770
TR770
TR770
TR770 accepts both flexible and rigid media substrates from films to metals. TR770 delivers a wide range of high-quality, durable indoor and outdoor applications. You will gain big versatility —— from POPs to backlits, signs, displays, decorations, etc. —— with the affordable TR770.

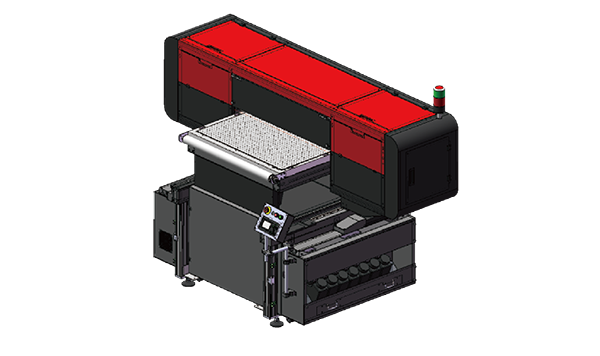

In flatbed printing mode, the gantry moves along gantry guide for high performance printing. TR770 provides the ability to print onto rigid media up to 800mm (31.5") wide × 430 mm (16.9") long and up to 200mm (8") thick.

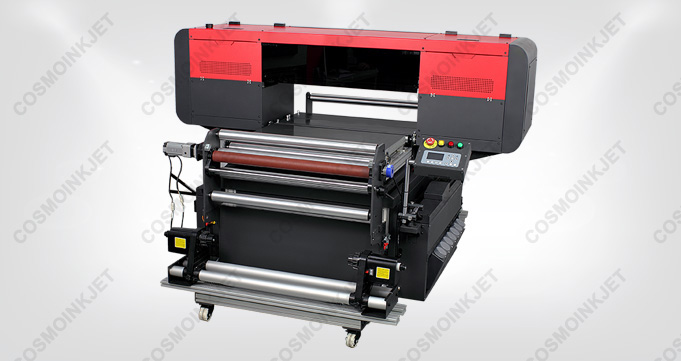

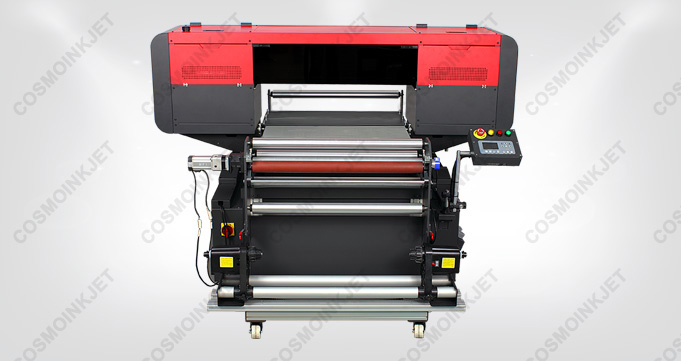

TR770 owns the ability of smooth changeover from flexible to rigid or from rigid to flexible media. The roll-to-roll optional device can be easily assembled with hasp locks.

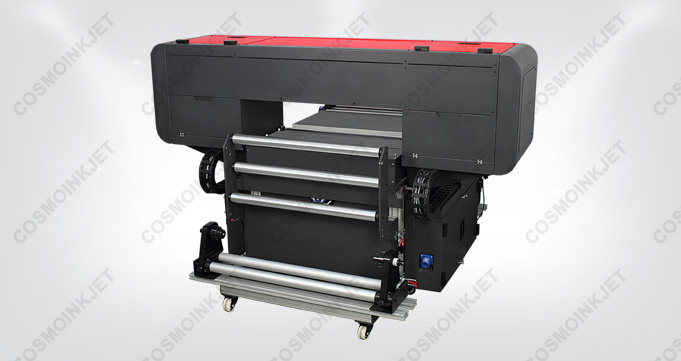

The roll media option offers the ability to print onto flexible media up to 770mm (30") wide.
|
| ColorPRINT RIP Software |
 4 color inks well reprint smooth gradations and light tones. |
 Directly prints on transparent and colored substrates. Brilliant and vivid image colors are displayed due to white ink layer under the image. |
 The primer can be printed with CMYK inks simultaneously. Automatic primer application function enables the primer to be applied in the print image area for better adhesion on different materials. |
 The varnish can be printed with CMYK inks simultaneously. Images will look more attractive by printing the varnish layer. |
 The white ink and varnish can be printed with CMYK inks for special market applications. |
Printing with the high density white ink, TR770 offers bright and vivid colors on transparent and colored media. Thanks to the separate white ink circulation system, TR770 easily keeps the white ink properly mixed for consistent and reliable printing.

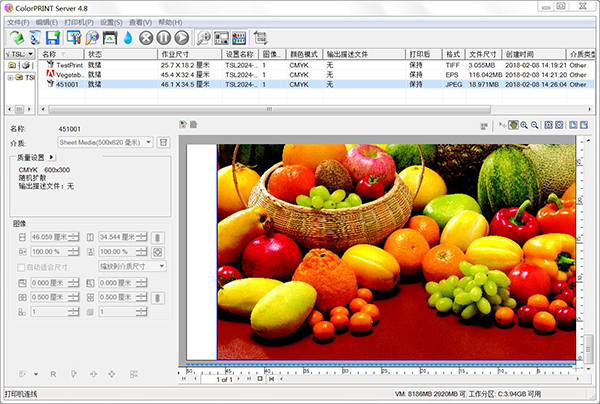

Coming with professional ColorPRINT RIP software, TR770 enables over-printing for backlit applications on transparent materials, under-printing for colored materials, printing white out of images, or printing white as a spot color.

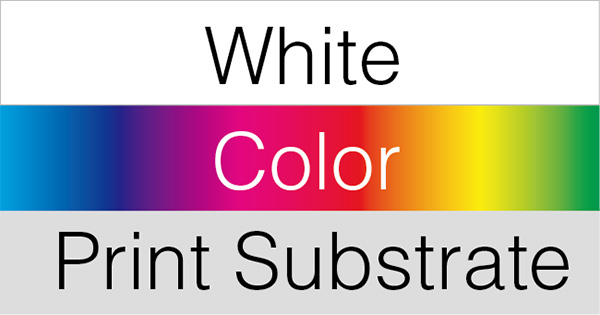

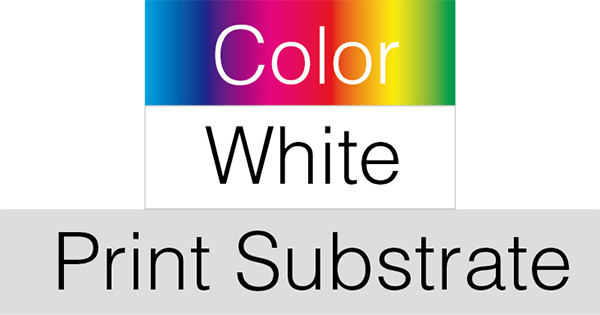

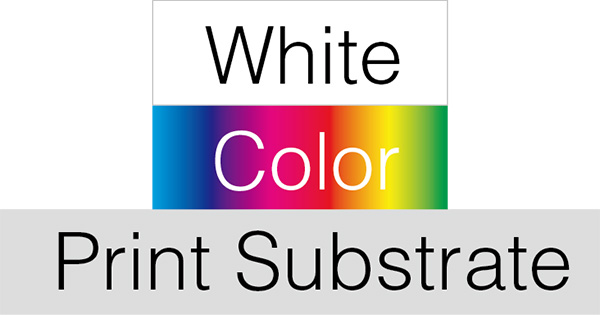

| Under-Printing | Over-Printing | |

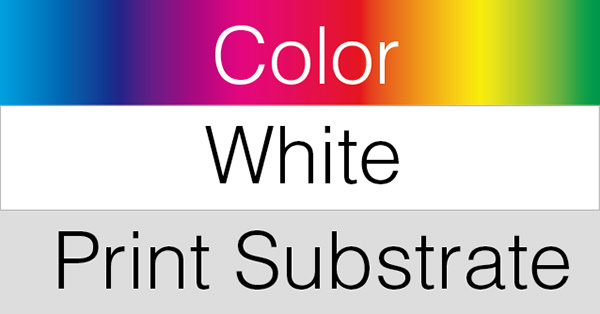

| Print white ink at the area of job |
|
|
| Print white ink at the area of image |
|
|

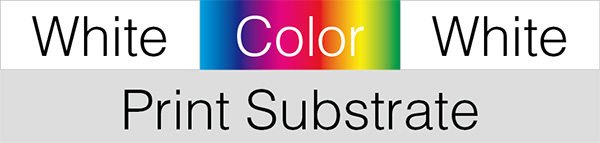

| Print white ink and color inks individually |
|
|

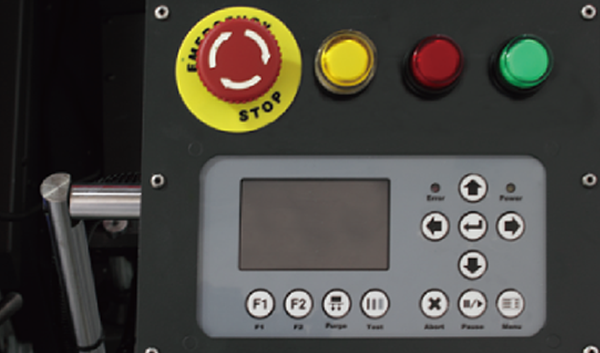

User friendly color LCD Smart Panel provides printer status information and offline printer control. |

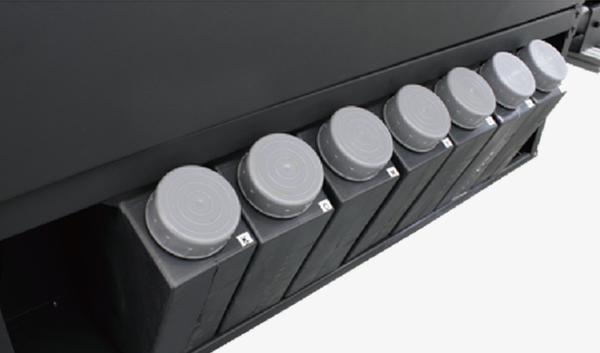

Automatic Ink Supply System monitors and controls the ink levels of the main/ sub ink tanks with liquid level sensors. The alarm will be automatically triggered for ink shortage or overflows. |

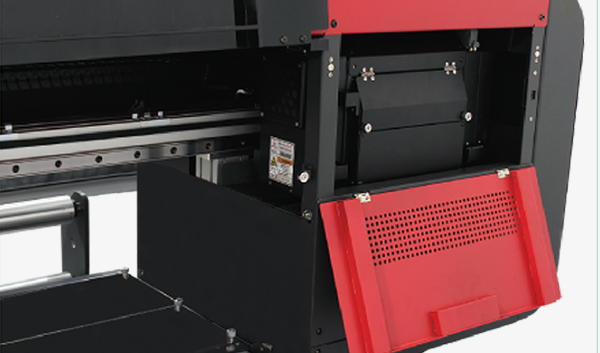

An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print heads. |
Advanced Variable Droplet Size Control Technology enables 1 to 3 levels of grayscale ink drop size control to improvethe print quality of gradations and color. |
| Print Head Model | |
| Number of Print Heads | |
| Number of Colors | |
|
Productivity in Flatbed Print Mode Unit: m 2 / hr. (ft 2 / hr.) |
1200 × 600dpi， 4 pass |
|
1200 × 900dpi， 6 pass |
|
|
Productivity in Roll-to-roll Print Mode Unit: m 2 / hr. (ft 2 / hr.) |
1200 × 600dpi， 4 pass |
|
1200 × 900dpi， 6 pass |
|
| MH2420 | |
| 4 | 6 |
| CMYK | WW + CMYK |
|
13.2 (142) |
11.9 (128) |
|
8.8 (95) |
8.2 (88) |
|
12.2 (131) |
11.8 (127) |
|
8.5 (92) |
8.2 (88) |
