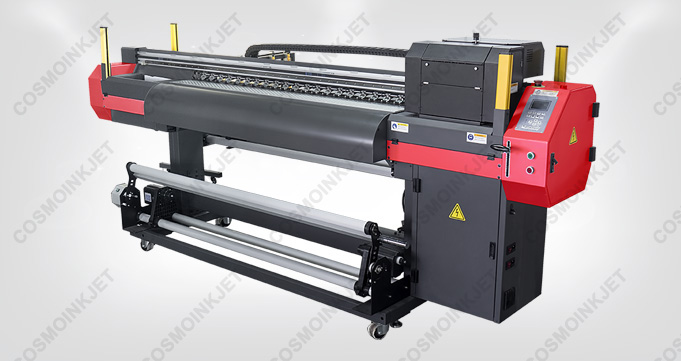

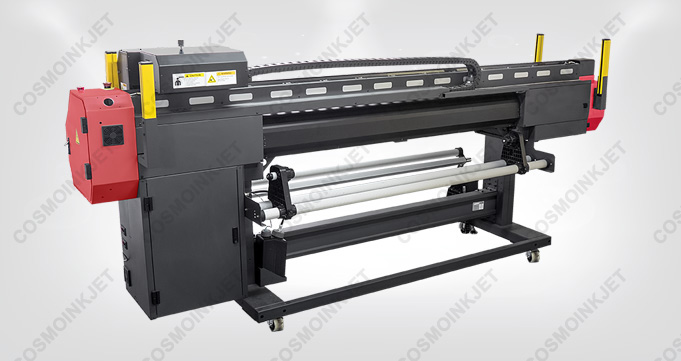

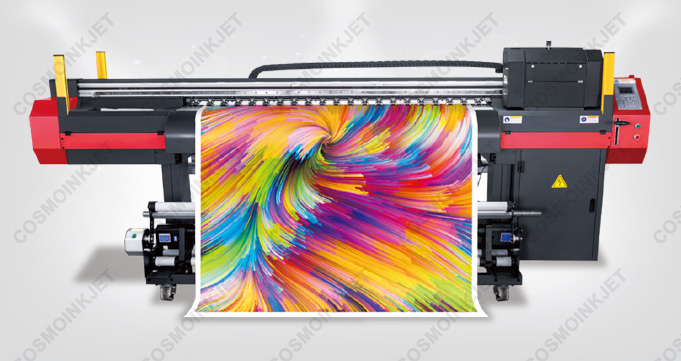

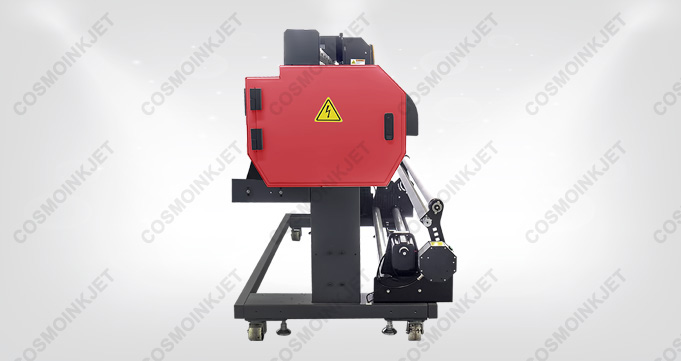

SL16 is an environment-friendly UV-LED inkjet printer, specially designed to print large-format indoor and outdoor signs and displays. With versatile media handling system and UV-LED curing technology, SL16 enables to directly print excellent images on a wide variety of flexible media and rigid substrates, including vinyl, banners, fabrics, card boards, carton boards, foam boards, etc. To help expand your revenue-producing opportunities, SL16 offers superior white and varnish ink printing for appealing finishing effects on transparent or colored media.
SL16
SL16
SL16
SL16
Utilizing the advanced DOD piezoelectric print heads, SL16 printer combines excellent
print quality and high efficiency with exquisite image output. The print heads feature
up to 600dpi physical resolution, minimum 5pl ink drop size, high jetting frequency,
and support grayscale printing.
Proprietary VDS (Variable Droplet Size) control technology integrates print head control
of 3-level droplet sizes with ColorPRINT RIP software for producing sharper images
with smoother gradients.
|
| VDS Control Technology |
SL16 accepts both flexible media and rigid substrates from films to boards, enabling you to expand your business with various applications of high quality printing. Thanks to the roll-to-roll release & take-up system, SL16 easily handles various wide-format flexible media within 130kg. While with an optional foldable supporting table, it supports printing on rigid substrates up to 10mm thick and 12kg with a minimal footprint.
|
|
|
ColorPRINT RIP Software |
Printer Control Software (PCS) |

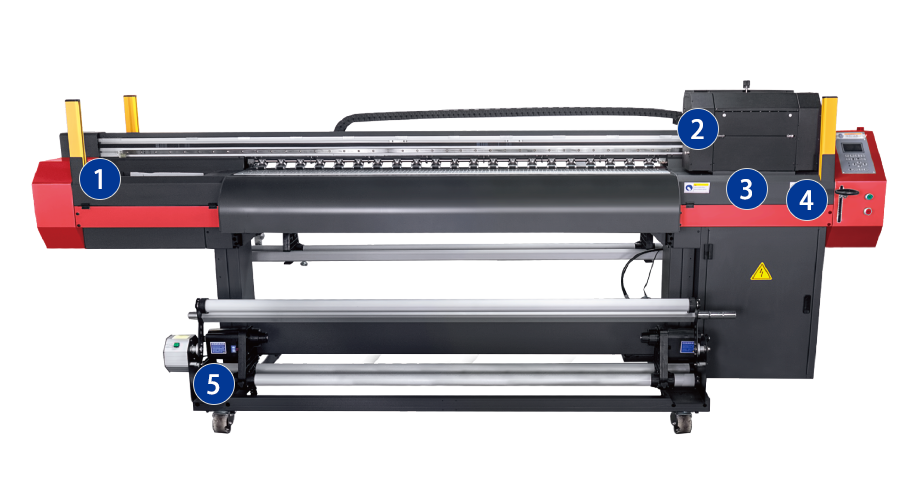

The light and sturdy uni-body frame structure and precise aluminum alloy profile beam ensure stable, high-speed, and high-resolution printing.
UV curable inks are immediately cured and dried with UV-LED curing technology in printing.
Two print head stations at each side of the printer enable users to maintain it timely and conveniently.
A high performance and long lasting AC servo motor controls the movement of the carriage.
Automatic media release and take-up system handles flexible media of up to 130kg.
Printing with the high density white ink, SL16 offers
bright and vivid colors on transparent and colored
media. Thanks to the separate white ink circulation
system, SL16 easily keeps the white ink properly mixed
for consistent and reliable printing.
Coming with professional ColorPRINT RIP software,
SL16 enables over-printing for backlit applications
on transparent materials, under-printing for colored
materials, printing white out of images, or printing
white as a spot color.
| Under-Printing | Over-Printing | |
| Print white ink at the area of job |
|
|
| Print white ink at the area of image |
|
|
| Print white ink and color inks individually |
|
|

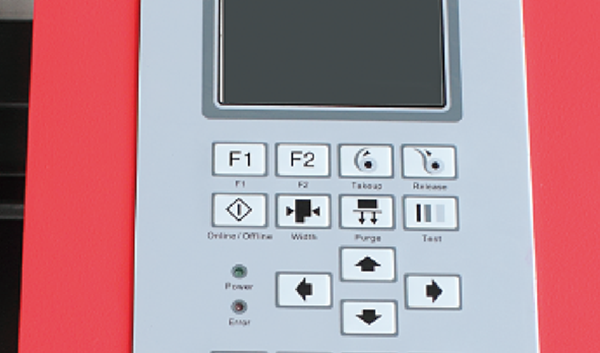

Color LCD Smart Panel provides printer status information and online/ offline printer control. |

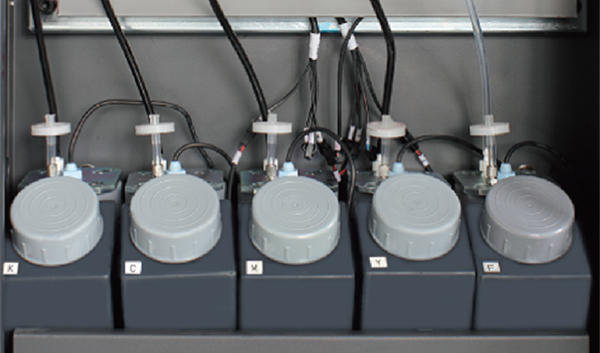

1.5L bulk ink tanks with liquid level sensors are easily used for adding ink and alarming for the shortage of ink. |
Silent linear guide and linear guide girder ensure accurate printing and comfortable operating. |

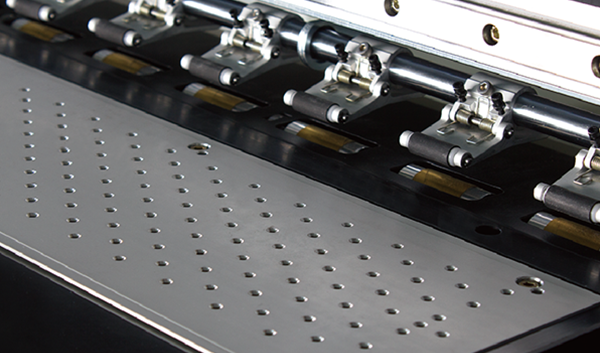

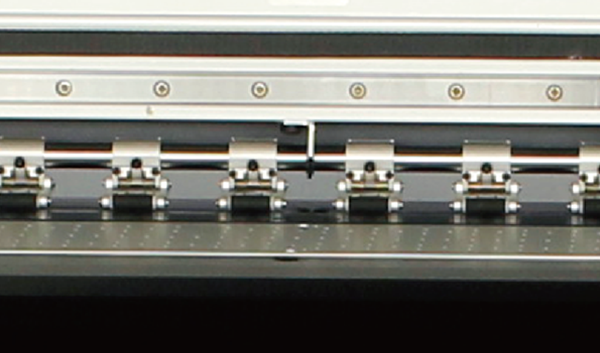

The vacuum platen with pinch rollers ensures the expected straightness of media feeding. |
| Print Head Model | |
| Number of Heads | |
|
Productivity Unit:m²/hr. (ft²/hr.) |
600 × 900dpi, 3 pass+ |
|
1200 × 600dpi, 4 pass+ |
|
|
600 × 900dpi, 6 pass+ |
|
|
1200 × 600dpi, 8 pass+ |
|
| MH2420 | ||
| 2 × 4，2 × 6 | ||
| 41 (441) | ||
| 33 (355) | ||
| 23 (248) | ||
| 18 (194) | ||
| MH5420 | ||
|
2 Rows, 4 or 6 Heads 0.5 × 2 × 4 or 6 Colors |
||
| 63 (678) | ||
| 54 (581) | ||
| 41 (441) | ||
| 32 (344) | ||
| Kyocera KJ4 | ||
|
1 Row, 3 Heads 0.5 × 1 × 6 Colors |
||
| 55 (592) | ||
| 44 (474) | ||
| 34 (366) | ||
| 26 (280) | ||
