NuviLIGHT® UV-LED light systems deliver superior performance, maximum UV energy and real-world reliability in both air and water cooled configurations. Ultraviolet (UV) LED systems are compact solid-state devices providing low energy consumption without moving parts. They are environmentally friendly with no ozone generation and mercury free.
NuviLIGHT UV-LED light systems provide the following features and benefits:
| Features | Benefits |
| Performance: High Intensity Light Source | Spectral radiant power equivalent to multi kilowatt mercury vapor lamp |
| Patented Technology encapsulated LEDs, arrays, optics, and cooling | Increased productivity, maintenance free |
| Reliability: consistent UV output over time, longer life | Lower cost of ownership |
| Instant on/off – Enabled only when required for curing | Less energy required, lower operating costs |
| Environmentally Friendly | Safer – mercury and ozone free |
| Small form factor and integrated electronic controls | Easy Integration |
| Cooler operating temperature | Ability to cure on heat sensitive substrates |
NuviLIGHT UV-LED light systems are available in four models. For more information, please click here. FAA075020-04, FAA050020-04, EAA075010-02, EAA110010-02

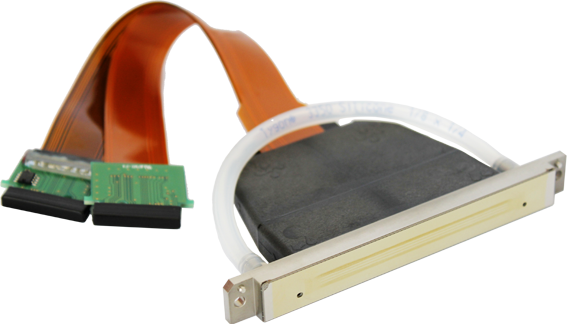

Amica is the RICOH® print head preferred distributor in Asia, excluding Japan. Amica's industrial inkjet solutions, from scanning inkjet printers to Venus variable data inkjet printing systems, support RICOH® MH2420, MH2620/ MH2820 and MH5420. For more information, please click here.
Amica is a premier system solution provider for Kyocera® print heads. Amica's single-pass inkjet printing systems for variable data printing (VDP), Morpho & Morpho Color, are equipped with high-performance Kyocera® KJ4 print heads. Kyocera® KJ4 print heads include KJ4A and KJ4B. Morpho & Morpho Color are widely used in envelope, packaging, coding & marking, business forms, labels, cards, and security printing. For more information, please click here.
| Model |
| Image |
| Number of Nozzles |
| Nozzles Per Inch |
| Effective Print Width |
| Drop Size (pl) |
| Frequency |
| Width x Depth x Height |
| MH5420 |
|
|
1,280 (4 × 320 channels) |
| 600 |
| 54mm |
| 7- 35 with grayscale |
| 20kHz |
|
89 x 25 x 69mm (excluding cables and connectors) |
| MH2620/ MH2820 |
|
|
384 (2 × 192 channels) |
| 150 |
| 65mm |
| 15, 30, 45; 27, 54 |
| 30kHz/ 20kHz/ 14kHz |
|
13.2 x 120 x 75.5mm (excluding cables) |
| MH2420 |
|
|
384 (2 × 192 channels) |
| 300 |
| 32.4mm |
| 7,14,21 |
| 20kHz |
|
63 x 63 x 16.2 mm (excluding cables) |
| Kyocera KJ4A |
|
| 2,656 |
| 600dpi (npi) |
| 108.25mm |
| 6, 7, 11, 14 |
| 20kHz |
| 200 x 25 x 59.3mm |
