LZC54

LZC54 INDUSTRIAL FULL-COLOR UV-LED WEB INKJET PRINTER

LZC54 is an innovative full-color UV-LED web inkjet printer specifically designed for industrial short-run narrow-format production. With compact and robust design, LZC54 offers outstanding print quality, exceptional productivity and great flexibility. Integrated with advanced UV inkjet printing technology, LZC54 supports a wide range of media that can be applied as labels, hang tags, tickets, lotteries/ bingos, foil packaging, etc.

As an ideal alternative solution to small water-based and thermal transfer printers, environment-friendly LZC54 has prominent advantages in producing smooth gradients and vivid colors with the productivity of up to 30m/ min. at a lower running cost.

Based on highly modular design concept, LZC54 can be configured with versatile post-printing modules, such as cutters/ dotting cutters, re-winders, detachers, die cutting or cross-cutting. LZC54 will help you build new business and win potential profits.

Wide Applicability and High Flexibility Create Profitable Opportunities

LZC54 offers a web width within 110mm and print width up to 54mm. It enables to print on a wide range of media, including self-adhesive label stock, coated paper, cast coated paper, uncoated paper, and aluminum foil.

LZC54 allows for adjustable variable data printing positions. The target printing positions of variable data usually change with different printing jobs. LZC54 enables you to meet the demand of each job for broad applications and more profitability.

  • LZC54LZC54
  • LZC54LZC54
  • LZC54LZC54
  • LZC54LZC54
  • LZC54
  • LZC54
  • LZC54
  • LZC54

Software

Professional Printer Control Software (PCS Pro) installed on the PC is specifically customized for variable data printing (VDP). It offers a user-friendly interface to interactively control the LZC54 printer, monitor its status, and set its options. With easy operation and maintenance of the printer, PCS Pro greatly enhances print productivity and efficiency.
MagicPage VDP Software offers a simple and flexible Variable Data Printing (VDP) workflow with the online and offline modes. Users can directly print VDP jobs with the MagicPage installed on the Client PC. MagicPage also enables users to design and modify the output templates by extensive editing tools.

Variable Data Printing Builds Added Value Applications

    Several types of variable data, such as text, dates, time, graphics, logos, serial numbers, barcodes, and photo images, can be printed out. Variable data printing helps you create added value applications and obtain more business opportunities for personalized printing.

HIGHLIGHTS

  • Advanced Print Head Control Technology Cosmoinkjet’s proprietary VDS (Variable Droplet Size) control technology produces vivid colors, smooth gradients, as well as crisp and clear small-sized texts and lines, providing you with high-quality final prints.
  • Automatic and Accurate Media Feeding Control The servo-driven system ensures high-precision and high-speed printing with low noise and slight vibration. The signal encoder enables to acquire media feeding signal for fast and accurate variable data printing.
  • Integrated UV Pinning and Curing System The UV pinning system maintains the ink droplet in place to control dot gains until it reaches the full UV curing system, which cures the ink finally and completely. With the integrated UV pinning and curing system, LZC54 provides sharper and vibrant print quality, outstripping other small-scale water-based label printers and thermal transfer printers.

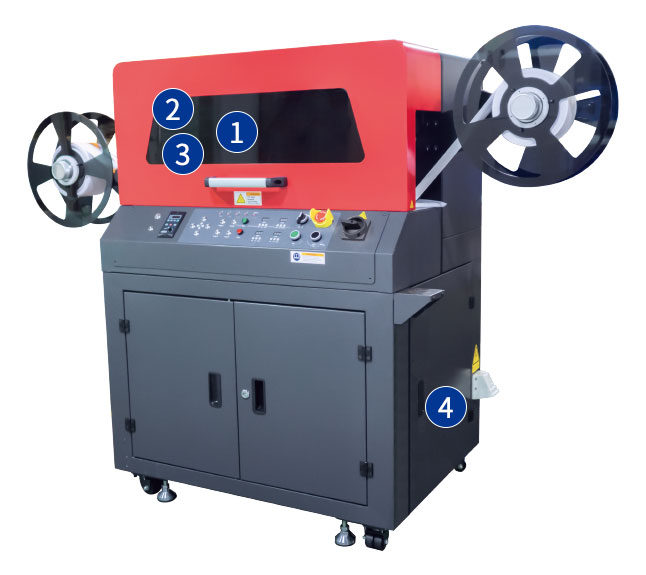

  • 1、Visualized Window

    enables to inspect printing status,preventing UV light leakage.

  • 2、Active Negative Pressure System

    provides high-quality printing at higher firing frequency.

  • 3、Print Head Maintenance System

    Adopting compact drawer-type design,Automatic Print Head Maintenance System allows purging, wiping and capping to promote performance.

  • 4、Ink Supply System

    Built-in liquid level sensors alarm the shortage of ink; anti-overflow unit prevents ink from flowing out, keeping related components intact.

Print Technology
Print heads: DOD piezo electric print heads Print resolution: 600 × 600dpi，600 × 300dpi Dropsize: 7 - 21pl, Variable Dot Size Max. print width: 54mm (2.13") Print head maintenance: Automatic Print Head Maintenance System for purging, wiping and capping
Print Productivity
Up to 30m/ min. (98.4ft/ min.)
Curing System
UV-LED pinning and curing lamps
Ink
Ink type: UV curable inks, CMYK Ink tank volume: 1L
Media
Handling: tight web continuous roll feed Types: self-adhesive label stock, coated paper, cast coated paper, uncoated paper, aluminum foil, etc. Roll-fed width: max. 110mm (4.33") Thickness: 0.08-0.50mm (3.15-19.68mils) Roll diameter: max. 400mm (15.7") Roll weight: max. 50kg (110lbs) Core diameter: 76.2mm (3.0")
Weight
500kg (1102lbs)
Environment Requirements
Temperature: 16 - 28°C (61 - 82°F) Relative humidity: 40 - 60% (Recommended) Altitude: up to 1000m (3281ft)
Power Requirements
Frequency 50/ 60Hz; Voltage 220V ± 10%; Power 3300W/ 15A
Software and User Interface
Professional Printer Control Software (PCS Pro) ColorPRINT RIP Software MagicPage VDP Software
Connectivity
Fast Ethernet
* For print head models or more customized configurations, please feel free to contact us.
